The canvas is where the composite of all the layers are viewed and where you draw, crop, or modify your image in other ways. The bottom portion of the canvas is called the status bar.
On the bottom left hand side of the window along the status bar you can find the image size. Clicking on the image size label will toggle between the image size, and the image PPI (Pixels Per Inch). If you have a selection present, this is where you can find its width, height, and x,y coordinates.
The current zoom (or magnification) level, as well as the option to change the zoom using a slider can be found on the bottom right hand side of the status bar. To manually enter a specific zoom value, click on the number percentage and an editable field will appear. Double clicking on the zoom slide will zoom the canvas to 100%.
The file name and format can be found along the center of the top window bar, and the close, minimize, full screen buttons are at the top left.
Along the top right of the inspector are buttons to switch between the tools inspector, filter inspector, and shape processor inspector.
Going into full screen mode allows you to expand Acorn to the entire screen. Toggle between regular screen and full screen mode quickly by using keyboard shortcut 'f'. To hide or display the tools palette in full screen mode, toggle the tab key. Move the canvas anywhere in the screen using the pan tool. Tip- hold down the space bar while using the move tool as an additional way to position the canvas.
See Also: Opening Images, Creating New Images, and Intro to Acorn’s Canvas (video tutorial)
Tools Palette & Inspector Palette
Acorn's various tools are available on the left-hand side of the workspace in the tools palette. When a tool is selected, its options are presented in the tools inspector palette, located on the right-hand side of the workspace. In this case, the crop tool is chosen and the inspector palette gives the option to modify its size, angle, position, as well as other variables.
Located at the bottom of the inspector palette are 3 buttons. The '+' button adds a new layer to the image. Clicking on the cogwheel brings up the layer contextual menu where you can add, delete, duplicate, and perform many other tasks with the currently selected layer. Clicking on the trash can located in the bottom right hand corner will delete the currently selected layer.
The option to separate the palettes from the canvas can be found under Preferences ▸ General ▸ Float inspector palettes in windows. To hide or display a floating tools palette or inspector palette, choose Window ▸ Tools or Window ▸ Inspector.

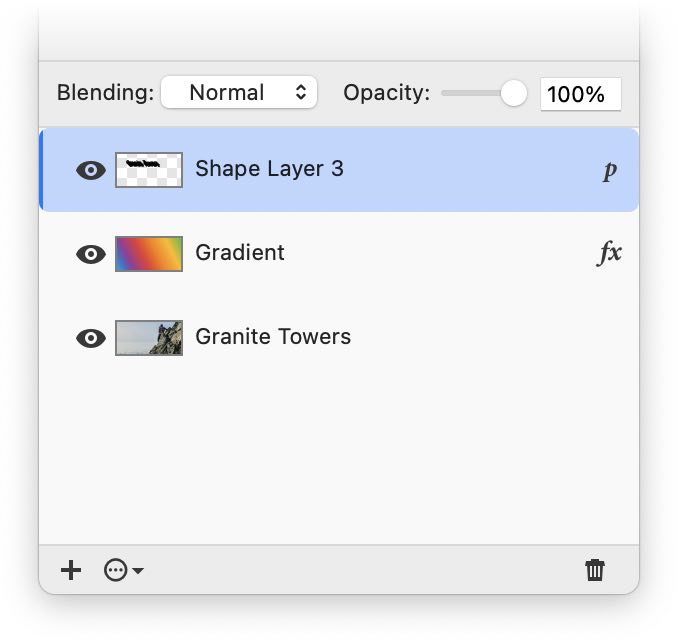

The Layers List
The layers list contains a list of all the image’s layers. Layers are composited together to form a single image which shows up in the canvas. The layers list is located at the bottom of the inspector palette.
The Menu Bar
The menu bar is located across the top of the screen. It allows you to access the various options available within Acorn such as saving your image, copying and pasting, and viewing guides. When you click and hover over a menu item a drop down menu will appear giving you more choices. For a full list of Acorn’s menu options, click here.
